Model No.: FDT2301
Thickness: 0.19mm
Width: 110-140 CM
Weight: 60 g/㎡
Surface Resistivity: ≤ 0.1Ω / sq
Shielding Effectiveness: ≥ 50dB/(10MHz-3GHz)

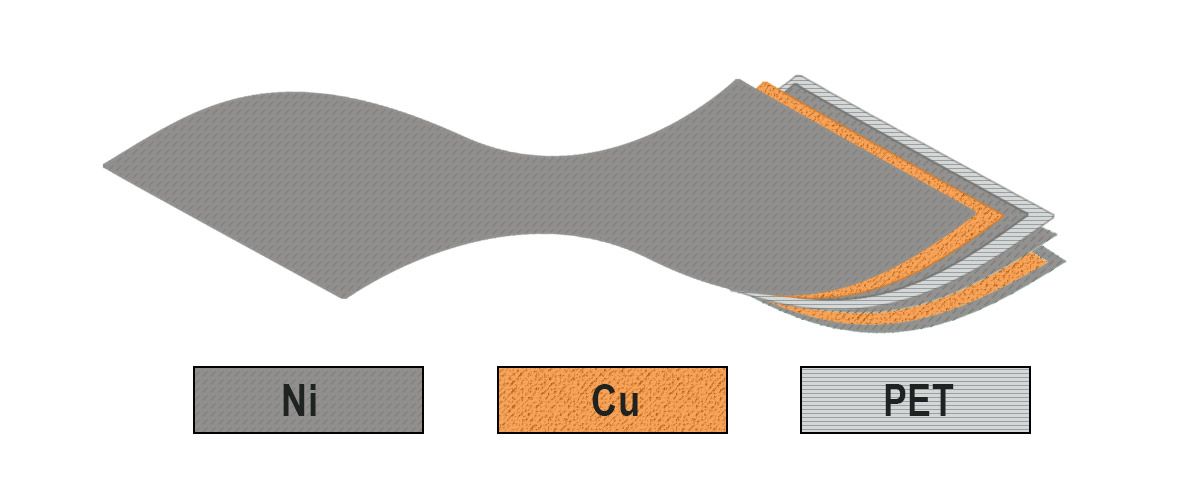

Copper-nickel conductive shielding net is a metallized conductive fiber net formed by adhesion of metal (copper-nickel) layer on the surface of polyester fiber net. It has high conductivity, good electromagnetic shielding performance, and is easy to cut and die cut.
Details
Copper-nickel conductive shielding net is a metallized conductive fiber net formed by adhesion of metal (copper-nickel) layer on the surface of polyester fiber net. It has high conductivity, good electromagnetic shielding performance, and is easy to cut and die cut.
Thickness: 0.19mm
Width: 110-140 CM
Weight: 60 g/㎡
Surface Resistivity: ≤ 0.1Ω / sq
Shielding Effectiveness: ≥ 50dB/(10MHz-3GHz)

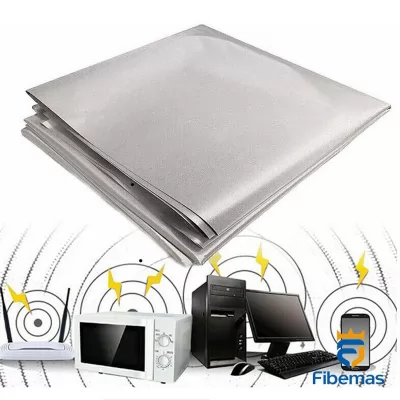

Copper-nickel conductive shielding mesh can be used as shielding/conducting/grounding and other fields. At present, it is used in shielding Windows, some internal shielding structures of electronic products, aerospace and some military.
