Model No.: FDT2303
Thickness: 0.11mm
Width: 10-150 CM
Surface Resistivity: ≤ 0.05Ω / sq
Shielding Effectiveness: ≥ 60dB/(10MHz-3GHz)

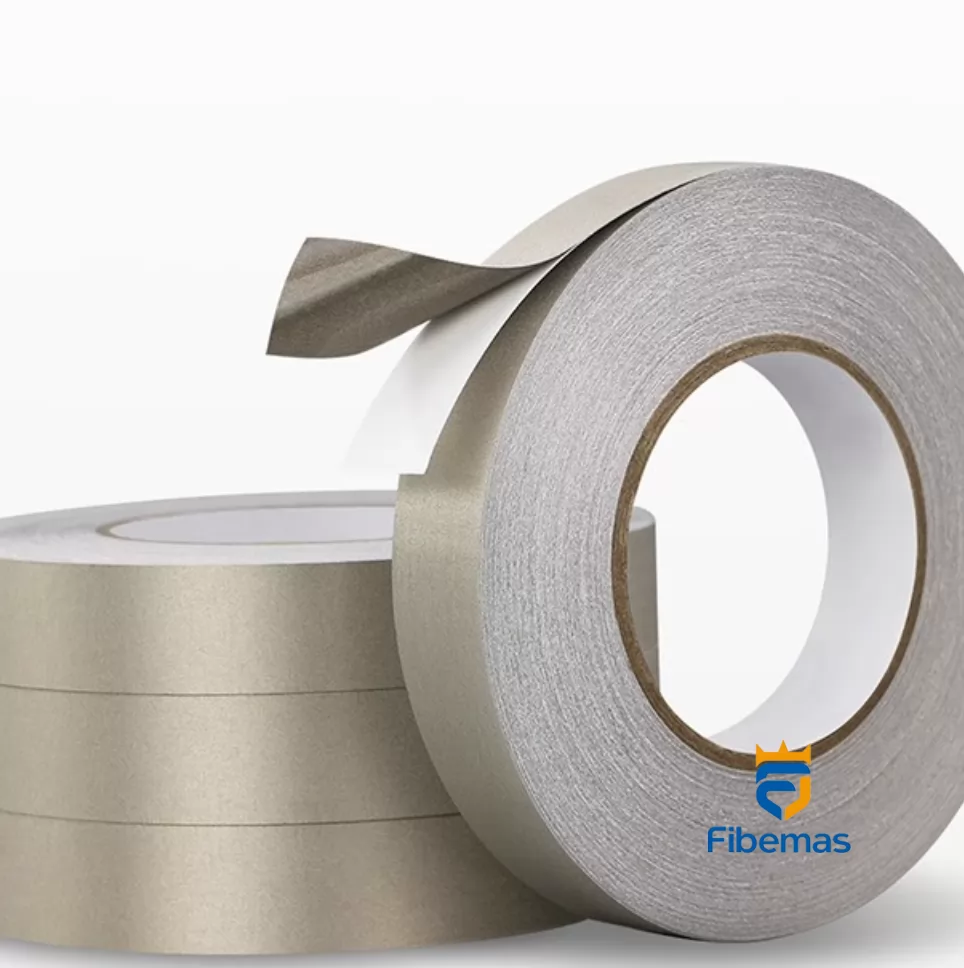

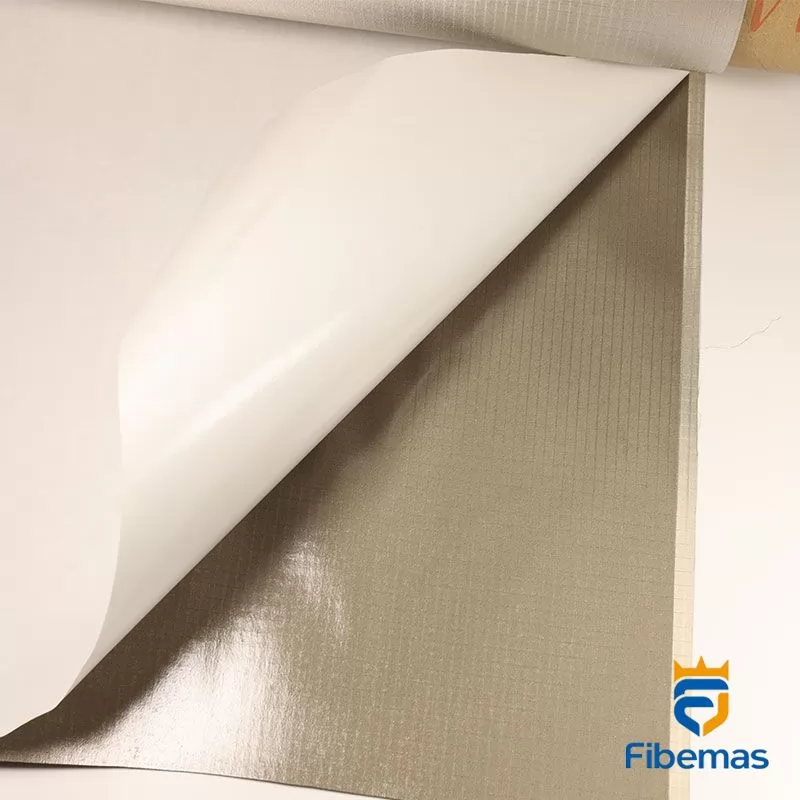

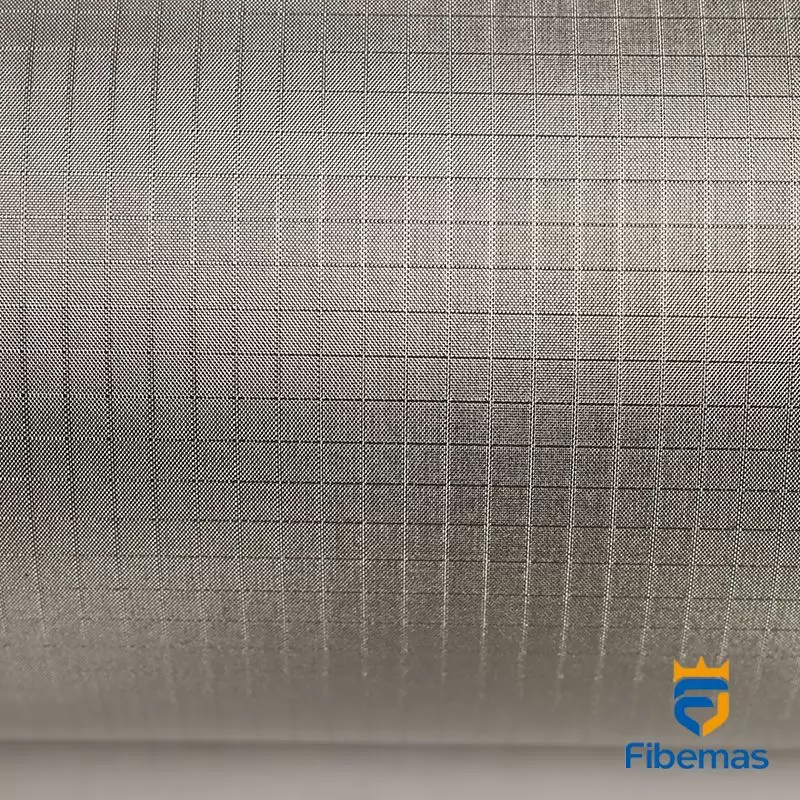

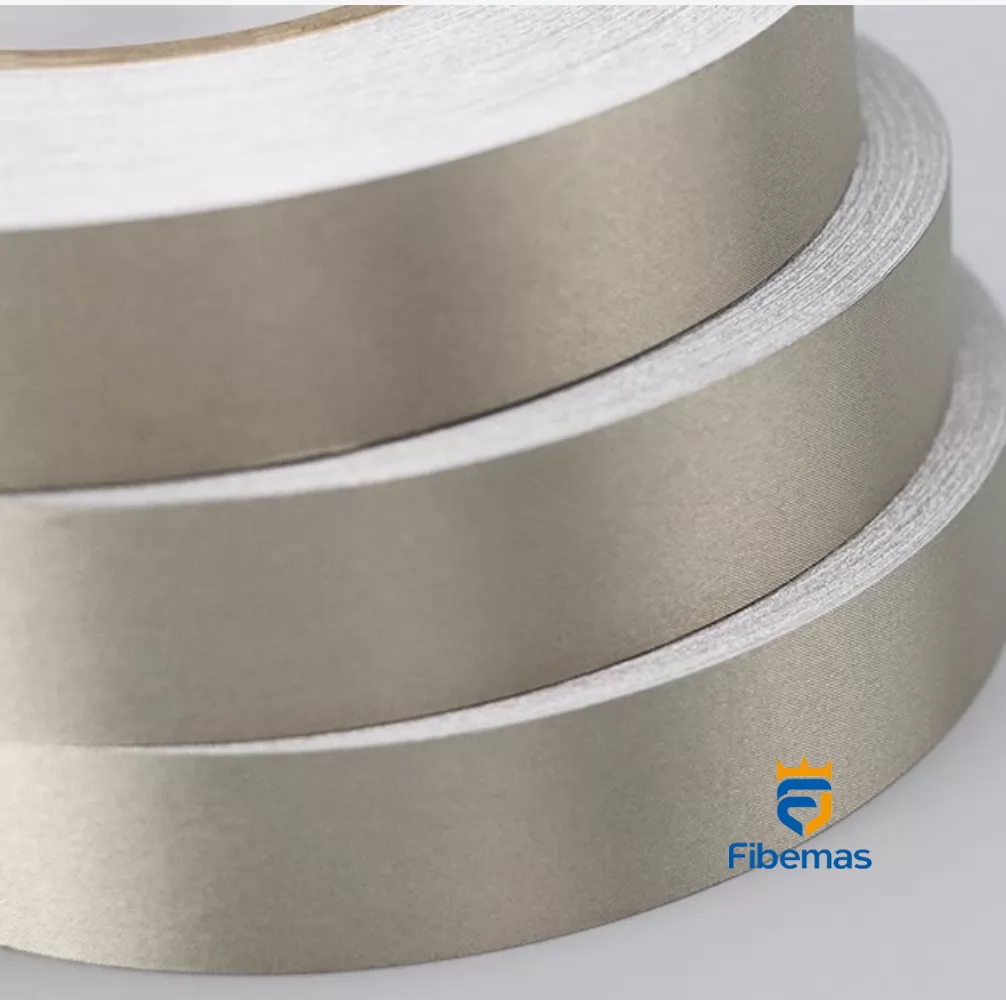

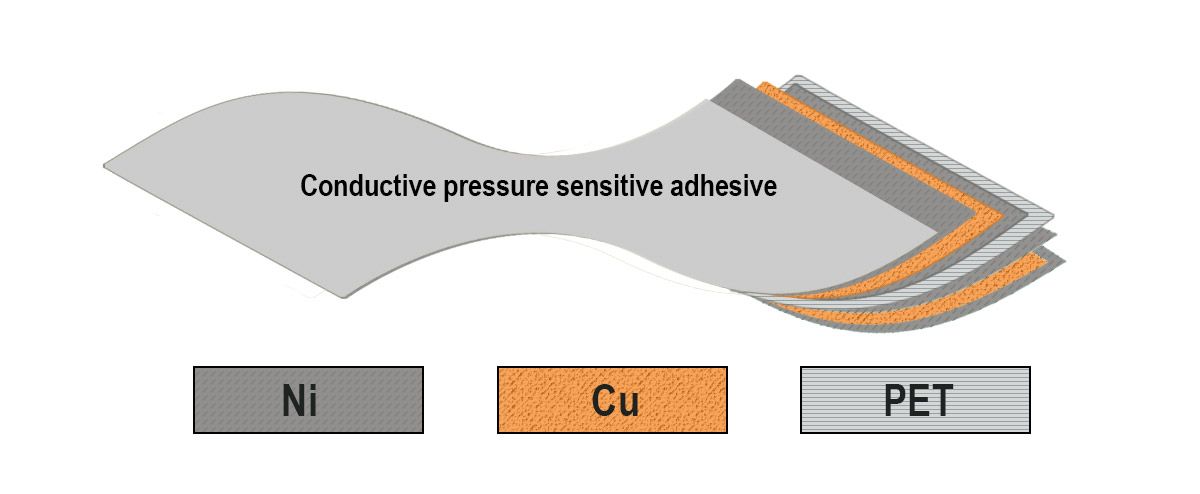

Plaid conductive single side tape is formed by electroplating metal (copper-nickel) layer on the surface of polyester plaid fiber cloth. It has the characteristics of high conductivity, good electromagnetic shielding performance, easy cutting and die-cutting, and long-lasting adhesion.
Details
Plaid conductive single side tape is formed by electroplating metal (copper-nickel) layer on the surface of polyester plaid fiber cloth. It has the characteristics of high conductivity, good electromagnetic shielding performance, easy cutting and die-cutting, and long-lasting adhesion.
Thickness: 0.11mm
Width: 10-150 CM
Surface Resistivity: ≤ 0.05Ω / sq
Shielding Effectiveness: ≥ 60dB/(10MHz-3GHz)
Copper-nickel conductive shielding network can be used as shielding/conductive/anti-static/grounding and other fields. At present, it is mostly used for shielding rooms, internal shielding structures of some electronic products, aerospace and some military industries.
