Model No.: FGYB5101

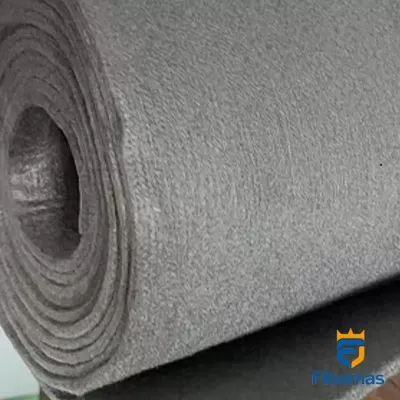

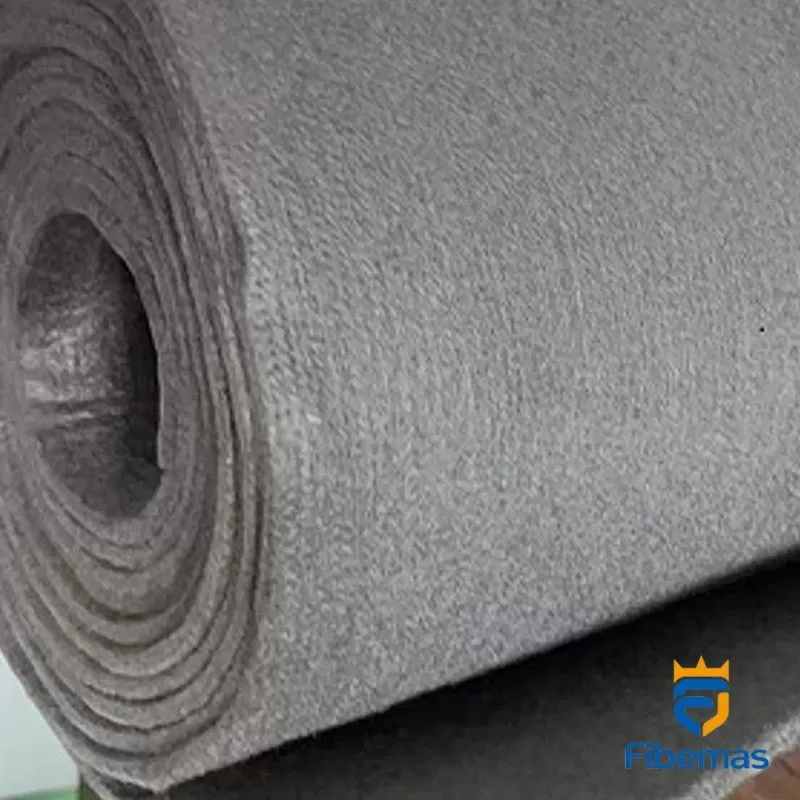

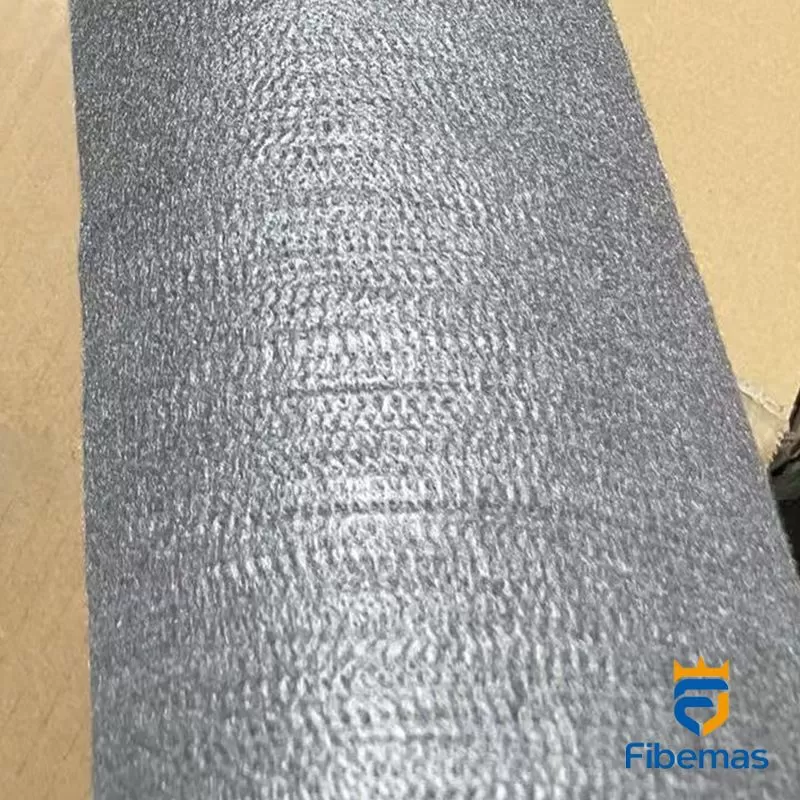

Stainless steel fiber felt is a high-performance industrial material made of micro-scale stainless steel fibers through non-woven web formation, multi-layer lamination, and high-temperature sintering processes. With its unique three-dimensional porous structure, it has become the preferred precision filtration and special functional material in the global industrial field. The product is manufactured in strict compliance with international standards, featuring both durability and versatility, and is widely suitable for various high-end industrial scenarios worldwide.
Sintered Metal Fiber Felt
Fibemas 316L Sintered Metal Fiber Felt is a porous metallic medium produced from micron-scale stainless steel fibers through non-woven web formation, multilayer lamination and high-temperature sintering. The bonded three-dimensional fiber network combines high porosity, good permeability and mechanical stability, making it suitable for demanding liquid and gas filtration processes.
Unlike woven wire mesh, which primarily captures particles on its surface, sintered metal fiber felt can retain contaminants throughout its porous depth. This structure increases dirt-holding capacity, slows the rise in differential pressure and supports longer operating cycles. Its all-metal construction also provides reliable performance in high-temperature, corrosive and vibration-prone environments.
| Parameter | Available Specification |
|---|---|
| Model | FGYB5101 |
| Raw Material | 100% 316L stainless steel fiber |
| Manufacturing Process | Non-woven web formation, multilayer lamination and high-temperature sintering |
| Structure | Three-dimensional porous fiber network |
| Porosity | 62%–88% |
| Air Permeability | ≥10–1,220 L/min·dm² |
| Bubble Point Pressure | 630–12,300 Pa |
| Working Temperature | Up to 600°C, depending on operating conditions and process medium |
| Reference Width | 1,000 mm |
| Reference Thickness | 4 mm or 6 mm |
| Reference Areal Weight | Approximately 1,500 g/m²a |
| Customization | Width, length and areal weight can be customized |
| Filtration Rating | Selected according to the required particle retention and flow conditions |

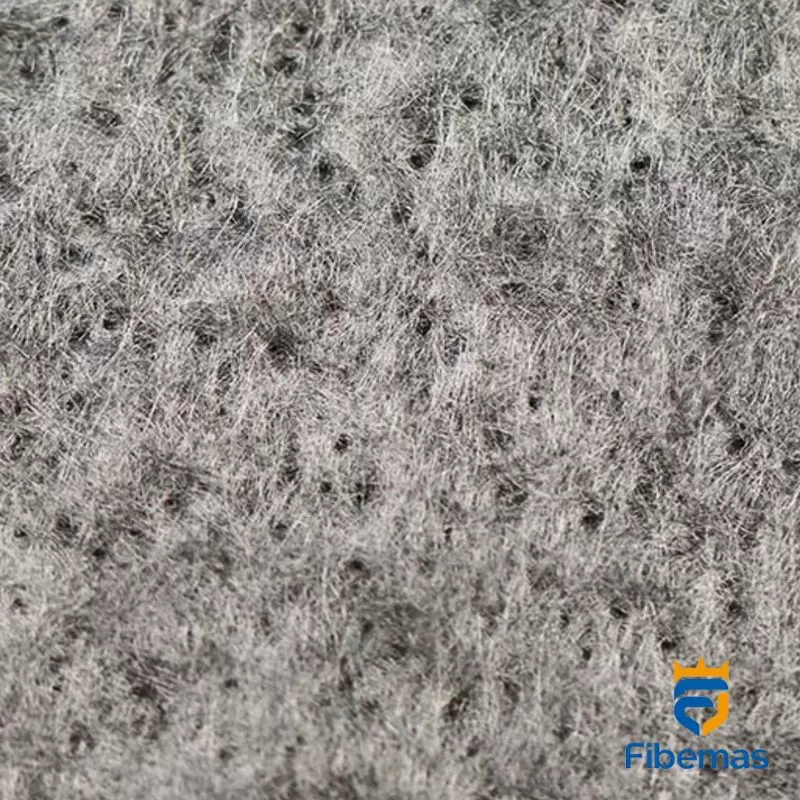

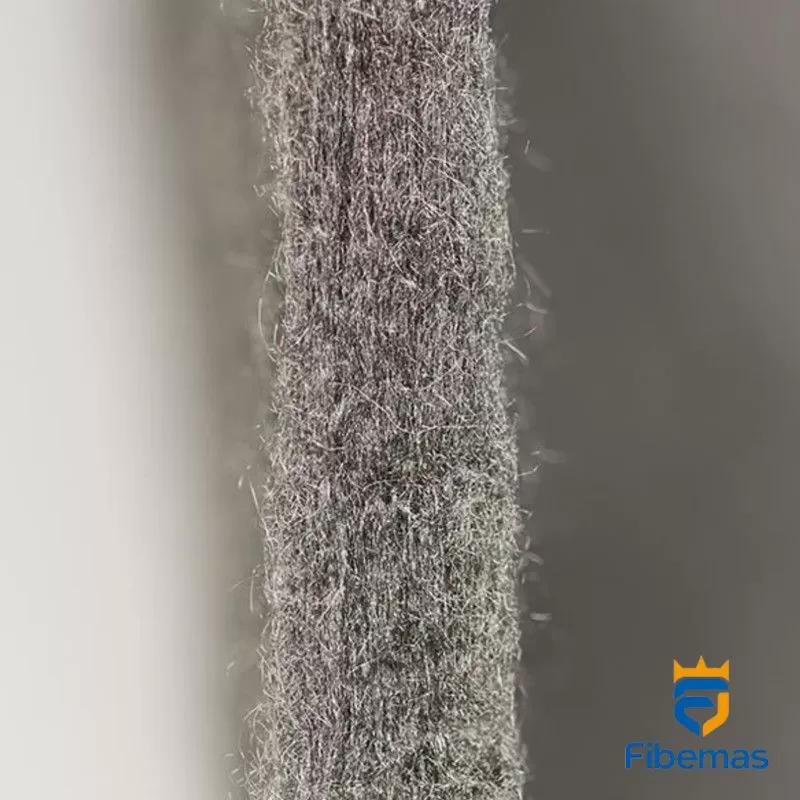

Fine 316L stainless steel fibers are randomly laid into a web and laminated to form the required thickness and pore distribution. During sintering, contact points between the fibers are metallurgically bonded without converting the structure into a solid sheet.
The resulting pore network creates multiple flow paths through the material. Larger particles are retained near the upstream region, while smaller contaminants can be captured deeper inside the media. This depth-filtration mechanism offers several practical advantages:
Higher contaminant capacity than a single-layer woven metal mesh
High flow capacity at a relatively low pressure drop
Stable pore structure under vibration and fluctuating process conditions
Reduced risk of fiber migration
Longer filtration cycles before cleaning is required
Fine 316L stainless steel fibers are randomly laid into a web and laminated to form the required thickness and pore distribution. During sintering, contact points between the fibers are metallurgically bonded without converting the structure into a solid sheet.
The resulting pore network creates multiple flow paths through the material. Larger particles are retained near the upstream region, while smaller contaminants can be captured deeper inside the media. This depth-filtration mechanism offers several practical advantages:
Higher contaminant capacity than a single-layer woven metal mesh
High flow capacity at a relatively low pressure drop
Stable pore structure under vibration and fluctuating process conditions
Reduced risk of fiber migration
Longer filtration cycles before cleaning is required
Stainless steel fiber felt has five core advantages:
① High porosity and large specific surface area design, ensuring large dirt-holding capacity and high filtration precision with a filtration efficiency of over 99.9%;
② Excellent mechanical strength, high temperature resistance, corrosion resistance, and impact resistance, maintaining structural stability in extreme environments;
③ Outstanding air permeability, maintaining high flow rate under low pressure difference, resulting in lower operating energy consumption;
④ Reusable after cleaning and regeneration, with a service life 3-5 times that of traditional filter materials, reducing overall costs;
⑤ Uniform and dense structure, no risk of fiber shedding, suitable for the strict requirements of precision industrial scenarios.
| Application | Filtration Requirement | Benefit of Metal Fiber Felt |
| Polymer and viscose processing | Removal of gels, agglomerates and solid contaminants from viscous melts | High dirt capacity and good permeability |
| Petrochemical and refining | Filtration of process liquids, oils and corrosive media | Heat resistance and 316L corrosion resistance |
| High-temperature gas filtration | Removal of dust and particles from hot gas or exhaust streams | Metallic structure maintains stability at elevated temperatures |
| Hydraulic and lubrication systems | Removal of particles that can damage pumps, valves and bearings | Stable filtration performance under pressure fluctuations |
| Fuel filtration | Fine particle removal from industrial, automotive, marine or aerospace fuels | Good mechanical strength and low fiber migration |
| Water and process-liquid treatment | Separation of suspended solids from industrial liquids | Reusable structure and controllable permeability |
| Catalyst and membrane support | Porous support or fluid-distribution layer | Uniform three-dimensional structure |
| Thermal, acoustic and shielding components | Heat insulation, sound attenuation or conductive functional layers | Heat-resistant and electrically conductive metal construction |
| Selection Factor | Sintered Metal Fiber Felt | Woven Metal Mesh | Polymer Filter Felt |
| Filtration Mechanism | Mainly depth filtration | Mainly surface filtration | Usually depth filtration |
| Dirt-Holding Capacity | High | Relatively limited | Medium to high |
| Permeability | High for a given filtration area | High but dependent on mesh opening | Depends on polymer and structure |
| Temperature Resistance | Suitable for elevated-temperature service | High, depending on alloy | Generally more limited |
| Corrosion Resistance | Good with correctly selected alloy | Good with correctly selected alloy | Depends strongly on polymer |
| Mechanical Stability | Strong sintered fiber network | Stable woven structure | Lower at high temperature |
| Cleaning and Reuse | Suitable for regeneration | Usually cleanable | Often used as disposable media |
| Particle Shedding Risk | Low with properly sintered construction | Low | Depends on fiber and binder system |
Fibemas supplies Sintered Metal Fiber Felt with customizable width, length and areal weight. To obtain an accurate recommendation and quotation, provide a sample, technical drawing or operating data together with your required annual quantity.
Custom requirements may include:
Width and length
Material thickness
Areal weight
Target porosity or permeability
Required particle-retention level
Operating temperature
Application medium
Packaging and delivery requirements
The most suitable configuration cannot be selected from porosity alone. Before requesting a quotation, buyers should define the following operating conditions:
Process medium: gas, water, oil, polymer melt, solvent or chemical liquid
Required particle retention or micron rating
Nominal or absolute filtration requirement
Operating and peak temperature
Normal flow rate
Initial and maximum allowable differential pressure
Chemical composition, concentration and pH
Required width, length, thickness and areal weight
Intended cleaning method and expected cleaning frequency
Required test reports, material documentation or inspection criteria
